Lewis H. Latimer’s Patent for a Book Supporter
Drawing

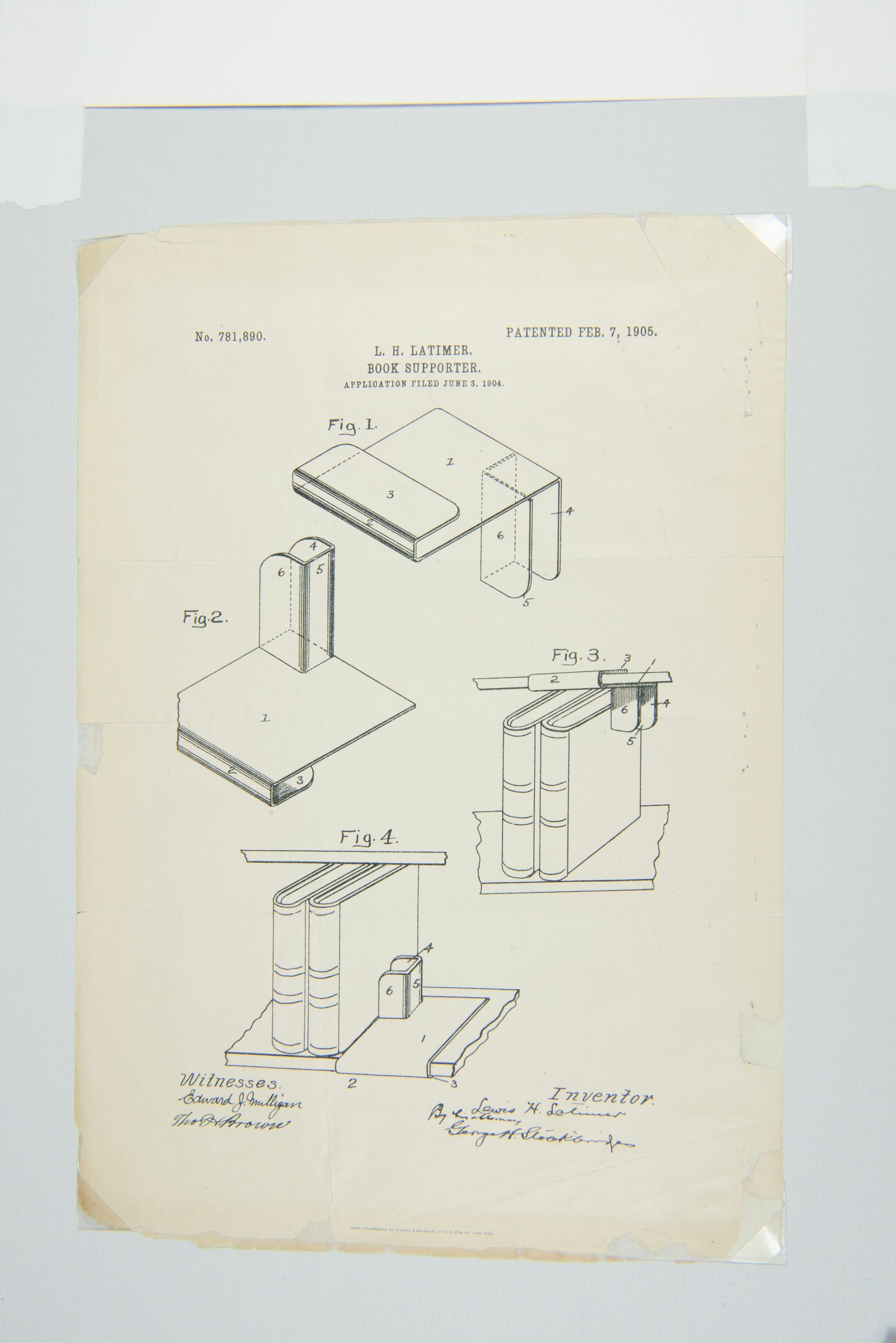

This patent document, filed by Lewis H. Latimer, showcases his invention for a book supporter, patented on February 7, 1905 (Patent No. 781,890). The document features technical drawings with multiple figures illustrating different views and uses of the book support.
Fig. 1 & 2: Shows the basic structure of the book support with a flat base and an upright support.
Fig. 3: Demonstrates how books are held in place.
Fig. 4: Illustrates a tabletop or shelf-mounted configuration.
This patent exemplifies Latimer’s diverse contributions beyond electrical engineering. His work extended into practical household innovations, reflecting his ingenuity in multiple fields.
Latimer Family Papers (1870-1996 ) [QPL Full Collection]
Signed by Lewis H. Latimer as the inventor. Witnesses: Edward J. Mulligan & Thos. P. Browne. The document was officially filed on June 3, 1904 and later patented in 1905.
